Working Space

[Rough Draft]

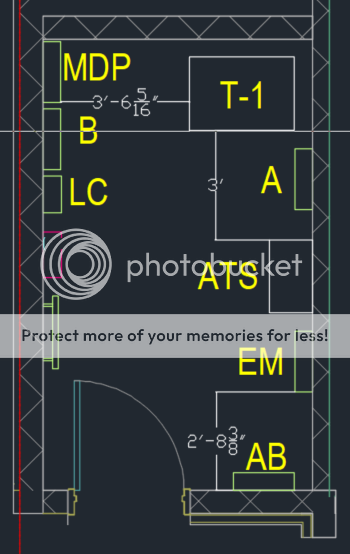

Hey all, I'm looking into moving some panels around in a future electric room to make space for some overhead ductwork.
My question is, would the placement of this ATS violate the working space in front of T-1? T-1 is 480:208/120V



[augie47]

Is the distance shown to the side of T-1 (non removable) ??



[Rough Draft]

Is the distance shown to the side of T-1 (non removable) ??

Correct, non removable. The removable cover would be towards the ATS.
Trying to gain space between AB and EM by turning T-1 to the position shown.
T-1 originally opened towards the MDP



[augie47]

IMO, it would be Code compliant. The side compartment of T-1 would simply be a grounded surface.



[Rough Draft]

Do you think there is any issue with the front edge of the ATS being at 3' in front of the transformer cover?



[augie47]

Opps.. I missed that measurement.. it might well be an AHJ call but more inspectors that I've worked with don't consider a transformer to fall under the "subject to be orked on while energized" clause.



[Rough Draft]

Thanks



[ron]

It would appear the transformer doesn't maintain the required working space, as you suspected.

Is the ceiling high enough that you could suspend the transformer above the height of the ATS?



[Rough Draft]

Is the ceiling high enough that you could suspend the transformer above the height of the ATS?

That could work. There's no ceiling in there, but I can't find the height of trusses/purlins above. The ceiling in the room next to it is 9'
